Información de Producto Volver a Listas de Precios
|
|
|
|
Familia:
Amplificacion
Rubro: Mixer Sin Potencia
Marca: Peavey
Linea:
Rq Series
|
|
12525348

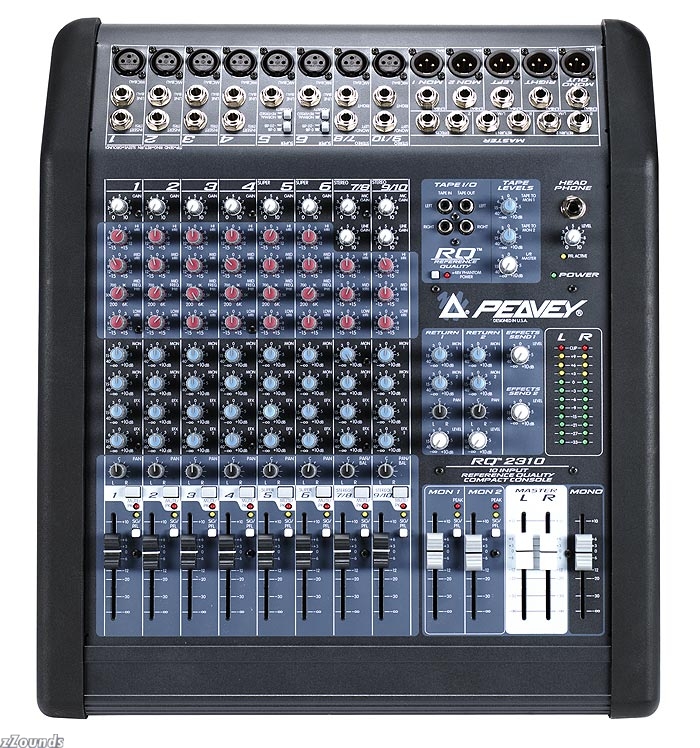

RQ2310
|
Click en Rubro-Linea-Marca
|
|
Mixer 8m 2s 4eq 4send Mute Pfl Rq Serie
|
|
|
Precio en:
Dolares 1 Pag. u$s
1 Pago de u$s 581,00
|
|
Para cambiar la Forma de Pago
seleccione otra en el panel de la derecha.
|
|
|
|
Vea estos Links:
web
-
foto
|
|
Accesorios Recomendados:
|
|
-
-
-
|
|
Detalles:
|
Product Description
Great features & a great look. Whether for a home project studio or mixing live sound, the RQ 23 Series has all the features you need plus Peavey reliability. The RQ 2310 features 8 XLR inputs, each with an insert and 48 V phantom power (the RQ 2314 has 12 and the RQ 2318 has 16). The channel EQ allows for excellent control with its sweepable mid frequency.
All of the RQ 23 Series miders have two stereo returns with separate volume for the monitor sends and pan allowing for some really creative miding options. The output section on these feature packed mixers has XLR balanced connectors for the left, right and mono outputs. Each of the channels has two indicators one for signal present and one for clipping, which allows you to see distortion on the channel BEFORE ANYBODY HEARS IT. Each input also features PFL for monitoring the channel and mute to allow you to turn off a channel without losing your fader setting. The RQ 23 Series brings home all the features you want at a price that you will like.
Features
8 low noise (reference quality) microphone inputs
Two channels with stereo line inputs
3-band EQ with mid-sweep on channels 1-6
3-band EQ on channels 7 & 8
Inserts on channels 1-4
Pad and polarity on channels 5 & 6
Mute and PFL on each input
LED clip, signal, PFL and mute indicated
Two pre-fader monitor sends with 60 mm master fader
Two post-fader effects sends
Two stereo effects returns
Precision 60 mm faders on input channels
Left, Right, Monitor 1 & 2 and Mono outputs with 1/4 inch unbalanced and
XLR balanced connectors
Rugged console design
Technical Description
Specifications
Gain Mic Input Gain Adj. Range: 10 dB to 56 dB
Mic Input to L/R Bal Output: 78 dB (Max Gain)
Mic Input Longest Path: 93 dB (Max Gain)
Line Input Gain Adj. Range: -10 dB to 46 dB
Line Input to L/R Output: 60 dB (Max Gain)
Line Input Longest Path: 73 dB (Max Gain)
Stereo Input Gain Adj. Range: 10 dB to 46 dB
Stereo Input to L/R Output: 36 dB (Max Gain)
Stereo Input Longest Path: 46 dB (Max Gain)
Aux Return to L/R Bal. Output: 34 dB (Max Gain)
Frequency Response Mic Input to L/R Output: 11 Hz to 42 kHz +0 dB / - 1 dB
Total Harmonic Distortion (THD) < 0.008% 20 Hz to 20 kHz Mic to L/R Output: (10 Hz - 80 kHz BW)
Equivalent Input Noise (E.I.N.) -129 dBu (Input terminated with 150 ohms)
Crosstalk Greater than 80 dB Adjacent Input Channels (20 Hz to 20 kHz)
Greater than 70 dB Left to Right Outputs (20 Hz to 20 kHz)
Common Mode Rejection Ratio (mic Input) 50 dB min (20 Hz - 20 KHz)
70 dB typ @ 1 kHz
Meters 12-segment, peak reading (0 dB = +4 dBu)
Signal/Overload Indicators Red LED lights 2 dB below clipping
Dimensions 4.45 x 16.158 x 18.93 in. (11.3 x 41.01 x 48.08 cm)
Weight 13.7 lbs. (6.21 kg)
|
|
|
