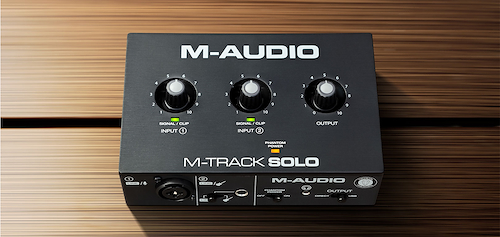

M-AUDIO MTRACK SOLOII 2-channel USB Audio Interface

Descripción

Crystal Clear Audio in a Compact Design

The M-Track Solo is the best, most portable recording interface in its class. It delivers 48 kHz audio resolution in a compact and easy to use format that is ideal for creating music on any Mac, PC or iOS device. This versatile interface works great for recording any type of sound source and features a single Combo Crystal Preamp with phantom power, plus a switchable Line / Instrument input making it compatible with any guitar or microphone. Plus, with M-Track Solo's 2-channel recording you can use both line inputs simultaneously to capture digital pianos, drum machines or any other stereo 1/4" device. M-track Solo is completely powered by USB, removing the need for an external power supply and making it perfectly portable for recording on-the-go. Throw it into your bag, grab a laptop, and create your next podcast, song, or mix anywhere you want!

Direct Monitoring & Headphone Connection

M-Track Solo offers zero-latency monitoring of the input signal through both the main RCA outputs and 1/8” headphone outputs. The USB/Direct switch adjusts the balance between the direct inputs and the playback from your computer software. This makes it easy to record new parts or add parts to an existing composition.

Start Recording Immediately

The M-Track Solo comes with a complete software package that has everything you need to get started right out of the box. Included are 2 great digital audio workstations (DAW)–Pro Tools | First M-Audio Edition and MPC Beats. These DAWs make it easy and fun to create professional sounding podcasts, music, or beat productions on any Mac or PC.

Key Features
2-Channel USB recording interface for Mac and PC
(1) Combo input with Crystal Preamp for amazing audio quality
+48V phantom power for connecting studio condenser microphones
Dedicated instrument input for guitar or bass
Stereo line input for connecting digital piano, keyboard and more!
1/8” headphone and RCA stereo outputs provide easy monitoring
USB/Direct switch for listening to the input signal or the computer signal
Software bundle, including: Pro Tools | First M-Audio Edition, MPC Beats, AIR Music Tech Xpand!2, Eleven Lite guitar amp plugin and 20 AVID plugin effects

Technical Specifications
Mic Input (balanced XLR)

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

Signal-to-Noise Ratio

109 dB (A-weighted)

THD+N

0.003% (min. gain, 0 dBu out, A-weighted)

Preamp EIN

-128 dBu (max. gain, 40 O source, A-weighted)

Gain Range

0 dB to +54 dB



Line Input (balanced 1/4" [6.35 mm] TRS)

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

Sensitivity

-43 dBu

THD+N

0.002% (min. gain, 0 dBu out, A-weighted)

Gain Range

-10 dB to +44 dB



Instrument Input (unbalanced 1/4" [6.35 mm] TS)

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

THD+N

0.005% (min. gain, 0 dBu output, A-weighted)

Input Impedance

1 MO

Gain Range

-10 dB to +44 dB



RCA Outputs

Frequency Response

20 Hz – 20 kHz (+0.1 dB)

Signal-to-Noise Ratio

109 dB (A-weighted)

THD+N

0.002% ( 0 dBu output, A-weighted)

Max Output Level

+4 dBu



Headphone Output (1/8” [3.5 mm] TRS)

Power

60 mW/Ch, 32 O

Frequency Response

20 Hz – 20 kHz (+0.5 dB)

THD+N

0.02% (A-weighted)

Signal-to-Noise Ratio

100 dB (A-weighted)



What’s In The Box
M-Track Solo

USB-B–to–USB-A Cable

Software Download Cards

User Guide

Safety & Warranty Manual
