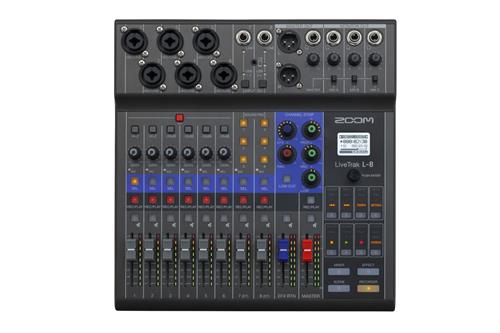

ZOOM PRO L-8 LiveTrak™

Descripción

Consola Digital | Con grabacion multipista simultenea 12 canales | 6 mono + 2 estereos | 3 mezclas independientes de auriculares | Multiefecto

THE BOARD FOR CREATORS
Creators are evolving—and so are we. Zoom LiveTrak L-8 makes it easier than ever to mix, monitor and record professional-sounding podcasts and music performances in one portable, affordable package.

LIVETRAK L-8
FEATURES
8-channel mixer (6 combo, plus 2 TS)
12-track simultaneous recording, 10-track playback
Mix-Minus function preventing audio feedback from dial-in guests
TRRS connection and included TRRS cable for phone connectivity
6 assignable Sound Pads, with 13 preset sounds
4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
3-band EQ and a low-cut function
7 scene memories for storing mixes
12-in / 4-out USB audio interface
Class-compliant mode (for iOS compatibility)
Battery operated with four AA batteries or a USB power supply
Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously
SPECS
INPUTS AND OUTPUTS / NUMBER OF CHANNELS
INPUTS: MIC/LINE : 6
LINE : 2
OUTPUT: MASTER OUT : 1
MASTER OUT (PHONES) : 1
MONITOR OUT (PHONES) : 3
INPUTS
MIC/LINE: Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: +10 – +54 dB/–3 – +41 dB (when Hi-Z ON)
Input impedance: XLR: 3 kO
Input impedance: TRS: 3 kO/1 MO (when Hi-Z ON)
Maximum input level: –2 dBu when –26dB switch OFF (at 0 dBFS)
Maximum input level: +24 dBu when –26dB switch ON (at 0 dBFS)
Phantom power: +48 V
LINE: Type: TS phone jack
Input impedance: 10 kO
Maximum input level: +3 dBu
SMARTPHONE CONNECTION JACK: Type: TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
Input impedance: 10 kO
Maximum input level: +3 dBu
OUTPUT
MASTER OUT: Type: XLR jacks (balanced)
Maximum output level: +14.5 dBu
Output impedance: 100 O
MASTER OUT (PHONES): Type: Standard stereo phone jack
Maximum output level: 10 mW + 10 mW (60O load)
Output impedance: 10 O
MONITOR OUT (PHONES): Type: Standard stereo phone jack
Maximum output level: 10 mW + 10 mW (60O load)
Output impedance: 10 O
BUSES
MASTER: 1
MONITOR: 3
SEND EFX: 1
CHANNEL STRIP
LOW CUT: 75 Hz, 12 dB/OCT
EQ: HIGH: 10 kHz, ±15 dB, shelving
MID: 2.5 kHz, ±15 dB, peaking
LOW: 100 Hz, ±15 dB, shelving
LEVEL METER: 9 segments
SEND EFFECTS: 8 types
RECORDER
MAXIMUM SIMULTANEOUS RECORDING TRACKS: 12 at 44.1/48/96 kHz
MAXIMUM SIMULTANEOUS PLAYBACK TRACKS: 10
RECORDING FORMAT: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
RECORDING MEDIA: 4GB–32GB SDHC-compliant cards (Class 10 or higher)
64GB–512GB SDXC-compliant cards (Class 10 or higher)
AUDIO INTERFACE
44.1/48 KHZ: Recording: 12 channels
Playback: 4 channels
BIT DEPTH: 24-bit
INTERFACE: USB 2.0
SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
WINDOWS: OS: Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
CPU: Intel® Core i3 or faster*
USB: USB 3.0/USB 2.0**
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
MAC: OS: macOS 10.12 / 10.13 / 10.14 / 10.15
CPU: Intel® Core i3 or faster
USB: USB 3.0/USB 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.
IPHONE/IPAD: OS: iOS 10 / 11 / 12 / 13
* Apple Lightning-to-USB Camera Adapter required.
CARD READER
CLASS: Mass storage USB 2.0 High Speed
SAMPLING FREQUENCY: 44.1/48/96 kHz
FREQUENCY RESPONSE: 20 Hz – 20 kHz: –1 dB at 44.1 kHz
20 Hz – 40 kHz: –3 dB at 96 kHz (when GAIN at 3 o'clock)
EQUIVALENT INPUT NOISE: –121 dBu or less (IHF-A) at +54dB/150O input
DISPLAY: LCD with backlight (96×64 resolution)
POWER: 4 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5V/1A
Supports USB bus power
ESTIMATED CONTINUOUS RECORDING TIME USING BATTERIES: Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15sec, BATTERY SAVING is ON and headphone impedance is 62O):
Alkaline batteries: about 2 hours
NiMH batteries (1900 mAh): about 3.5 hours
Lithium batteries: about 6.5 hours
• The above values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
POWER CONSUMPTION: 5 W
EXTERNAL DIMENSIONS: 268 mm (W) × 282 mm (D) × 74 mm (H)
WEIGHT (UNIT ONLY): 1.56 kg
